KILN OPTIONS
Easy-Fire E18S-3 Pottery Kiln - L&L Kilns
Flagship Multi-Purpose Kiln
KEY SPECS
Small (2.5 cubit feet)
Genesis Multi-Zone Touchscreen Control
Cone 10, 2350F, 1290C
$3,070*
ESTIMATED LEAD TIME: 10 to 12 Weeks

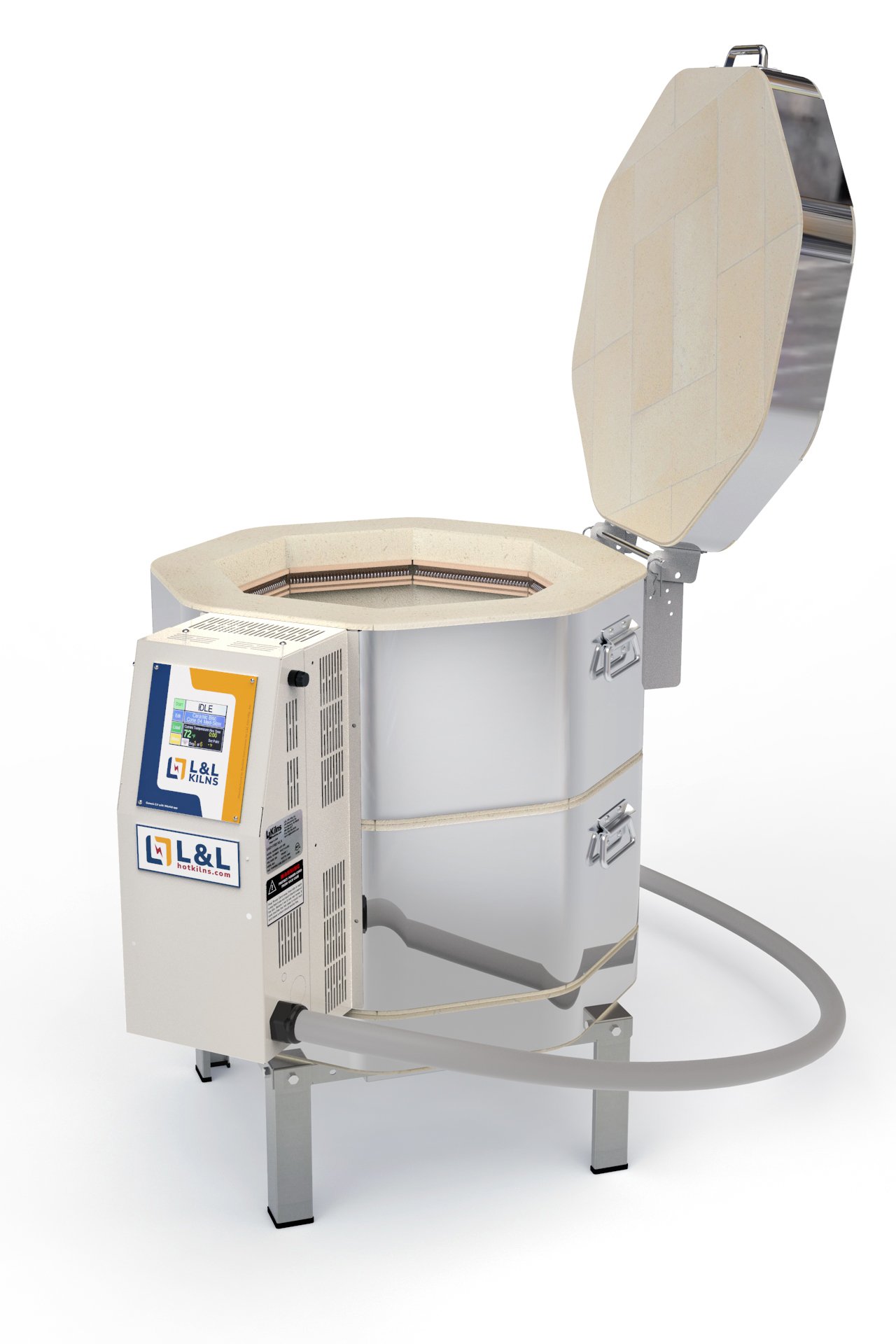

Model e18S-3 Easy-Fire Automatic Kiln with Multi-Program Two-Zoned Genesis Touchscreen controlmounted in an easy-open cool-firing piggyback control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, thermocouple protection tubes, a strong solid-top stand, and solid peephole plugs. 16-1/2" diameter by 18" high (2.5 cubic feet). 3" K23 brick. NEMA 6-50 single phase or 15-50 three phase 6 foot power cord included. C-MET-us listed in the USA & Canada. Cone 10 for all voltages. There are two thermocouples. No charge for 3-phase versions.
Normal plug is 6-50 but is available with a 30 amp plug
*Taxes and freight will be added to this cost. Please contact us for final pricing.
All Easy-Fire Kilns include Genesis Touchscreen Multi-Zone Control
DETAILS
Insulation: 3" K23 Firebrick
Sections: Two 9" high sections
Inside Dimensions: 16.50" Diameter x 18.00" High (41.91 cm Diameter x 45.72 cm High)
Outside Dimensions: 28.00" Wide x 30.00" Deep x 55.00" High (71.12 cm Wide x 76.2 cm Deep x 139.7 cm High)
Weight: 185 lbs (84 kg)
SPECIFICATIONS
CONTACT US
Have a quick question? Contact us directly and we’ll get back to you shortly.
ORDERING
We want to ensure you get the correct kiln. We will contact you directly to confirm your order details. The final price, including taxes and freight, will be calculated. The order will not be confirmed until payment is recieved in full.
FEATURES
Proprietary Reflective Ceramic Coating
L&L coats the firebrick with a proprietary reflective ceramic coating which penetrates, binds and hardens the surface of the entire interior of the kiln. This will reduce brick dusting, makes the kiln interior more durable and helps improve energy efficiency.
Genesis Touch-screen Controller
The Genesis Touch-screen features Dynamic Zone Control. It is like having three controls in one. The Genesis Touch-screen separately measures temperatures in the bottom, middle and top of the kiln and automatically adjusts the heat output of three separate heating zones even as the kiln is heating up. Kiln temperatures are automatically evened out to within 1/2 cone or better top to bottom. There is no manual intervention with input switches. There are separate thermocouples (heat sensors) and contactors (power controls) for each of the three zones. You have the ability to adjust the "lag" or differential between zones, (anywhere from 5 degrees to 99 degrees).
L&L Ceramic Element Holders
L&L Kiln's patented hard ceramic element holders protect your kiln. The ceramic element holder protects the soft fragile firebrick. Replacing elements repeatedly does not damage the brick. Elements don't sag or fall out of broken grooves. You do not need metal pins to hold elements into broken grooves. Customers often say their L&L kilns look new after 30 years of hard use!
OPTIONAL ADD-ONS
Rolling Kiln Stand
L&L's rolling kiln stand features heavy gauge (14 ga) galvannealed steel construction with multiple bends for extra strength, steel swivel locking casters, integrated vent collection box support, and guide rails for the kiln. Each size is fitted to the kiln. Important special caution plates are riveted to three sides of the stand. The vent collection box is not included but, when you order a Vent-Sure vent system the longer duct is included with the system.
Optional Vent-Sure Control
The vent control allows you to automatically control the operation of the Vent-Sure kiln vent with one of the outputs from the Genesis Touch-screen or Genesis.
Optional Shelf Kit Includes:
Part Number: H-E-K18S/30
Includes: One 15" Full Round Shelf and and Four 15" Half Round Shelves (5/8" thick), Four each of 1/2", 1", 2", 4", & 6" high 1-1/2" Square Ceramic Posts, and One Pair Heat Resistant Gloves
Price: $350.00
Optional Quad Elements
Estimated Lead Time of 10-12 Weeks
The Quad element system provides four wraps of elements in one 9" high section. When we couple this with our superior element holder that transmits heat and the fact that our element outside diameter is almost a full 1/2" - this is the best element on the market in top-loading kilns.
This is a Special Order option, please call for pricing.
